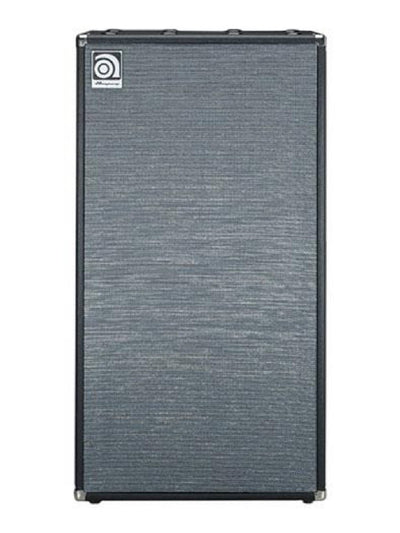

Ampeg SVT810AV 8x10 Bass Cab

Its all about tone. And this is the speaker enclosure theyre talking about when they say SVT cabinet.

Why do we use eight 10 speakers? Because we learned early on that 10 speakers work much more efficiently than fifteens or eighteensand if you put eight 10 speakers together, you can move a much larger column of air. In fact, youd need five 18 or six 15 speakers to move as much air as the SVT-810AV! And they simply wouldnt be able to respond to transient peaks as quickly as our tens.

The SVT-810AV is still manufactured using the same design dating all the way back to 1969. The Infinite Baffle design of these sealed enclosures produces vast amounts of tightly focused bass. Thats why youll find the SVT-810AV on stage with such artists as Stefan Lessard (Dave Matthews Band), Gail Ann Dorsey (David Bowie, Gwen Stefani Band), Garry Beers (INXS), and far too many others to list here. In the world of high performance bass cabs, the Ampeg SVT-810AV stands tall and proud.

Tilt Back Handle Bar
1/4" and Neutrik Speakon Jacks
Baltic Birch Plywood
Heavy-Duty Recessed Wheels
Skid rails
SVT-AV Head Color-Scheme

LF Drivers: 8 x 10
Voice Coil: 2
Magnet Weight (each): 30 oz
RMS Power Handling: 2 x 400-Watts (Stereo)
RMS Power Handling: 800-Watts (Mono)
Frequency Response (-3dB): 58Hz-5kHz
Usable Low Frequency (-10dB): 40Hz
Nominal Impedance: 2 x 8-Ohms (Stereo)
Nominal Impedance: 4-Ohms (Mono)
Sensitivity: 100dB
Maximum SPL: 130dB
Dimensions (W x H x D inches): 26 x 48 x 16
Shipping Weight: 165 Pounds
Handling Weight: 140 Pounds
