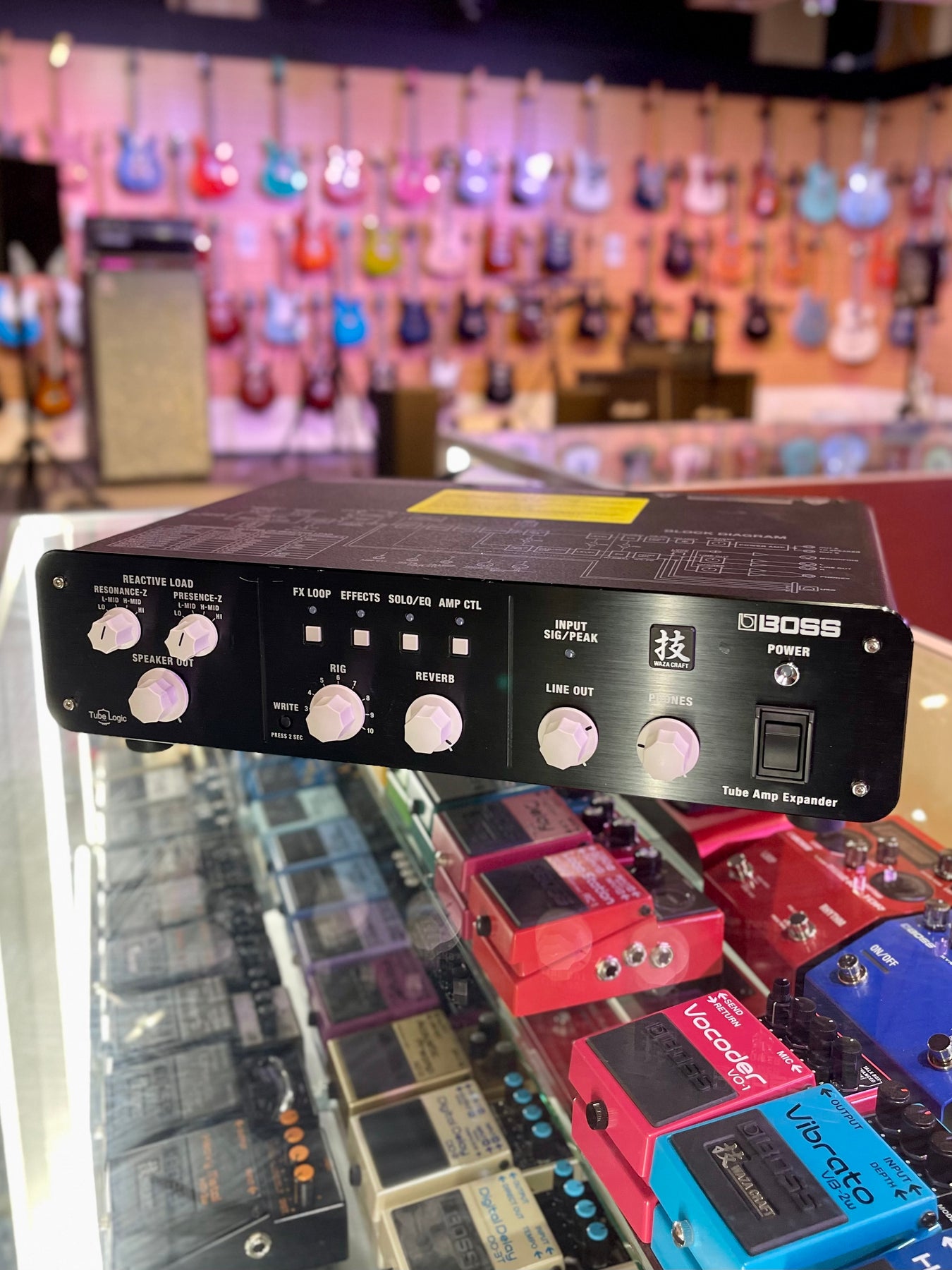

Boss Waza Tube Amp Expander (Trade In)

Used like new! Does not come with rack mounts or USB cable. There once was a ship that put to sea, The name of the ship was the Billy O' Tea! The winds blew up, her bow dipped down, Oh blow, my bully boys, blow (huh)

---

Bringing together a diverse range of professional tone tools for the very first time, the Waza Tube Amp Expander elevates the tube amp experience to a new level of versatility for stage performing and studio recording. This amazing device does it all - it's a variable reactive load box, active analog power stage, mic'd cab simulator, IR loader, and recording interface, all in one integrated unit that's road-ready and easy to use. With extensive connectivity, built-in BOSS effects, 10 fully customizable rig setups, and deep real-time control, you have unparalleled creative command for any scenario. Packed to the max with breakthrough BOSS innovations, the Waza Tube Amp Expander is an essential companion for every tube amp player.

Features
Advanced variable reactive load circuit with discrete analog components supports tube amps up to 150 watts
User-adjustable impedance tuning correctly matches the reactive load to your amp, retaining its natural tone, dynamic feel, and distortion characteristics
10 recallable rig settings for storing favourite setups
Deep real-time performance control via GA-FC/FS-series footswitches and MIDI I/O
Built-in 100-watt Class AB power amplifier with discrete analog design and seamless volume control
Powerful DSP section with 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
Customizable stereo effects with premium tone quality: compressor, delay, reverb, and four EQs
Seven mic'd cabinet emulations with five selectable mic types, plus four slots for loading user speaker IRs
External effects loop with selectable series/parallel operation and control jack for switching amp channels
Parallel speaker outputs for connecting up to two cabs for gigging
Balanced XLR line outputs (mono and L/R stereo) for connecting to FOH console, stage monitors, and recording devices
Headphones output for quiet practice with cranked-up amp tones
Dedicated editor software (Mac/Windows)
USB for direct audio recording and editor communication

Specifications

FROM TUBE AMP Input
Maximum Input Power: 150 W
Input Impedance: 4/8/16 ohms (selectable)
Safety Load (power off): 16 ohms

TO SPEAKER Output
Rated Power Output: 100 W (8 ohms)
Load Impedance: 4-16 ohms

Nominal Output Level
LINE OUT L/R: +4 dBu
LINE OUT MONO (FOH): +4 dBu

FX LOOP Nominal Output Level: -10/+4 dBu (selectable)

Maximum Output Level
LINE OUT L/R: +20 dBu
LINE OUT MONO (FOH): +20 dBu
FX LOOP SEND: +6 dBu (-10) /+20 dBu (+4)

Input Impedance: FX LOOP RETURN: 1 M ohm

Output Impedance
LINE OUT L/R: 600 ohms
LINE OUT MONO (FOH): 600 ohms
FX LOOP SEND: 1 k ohm

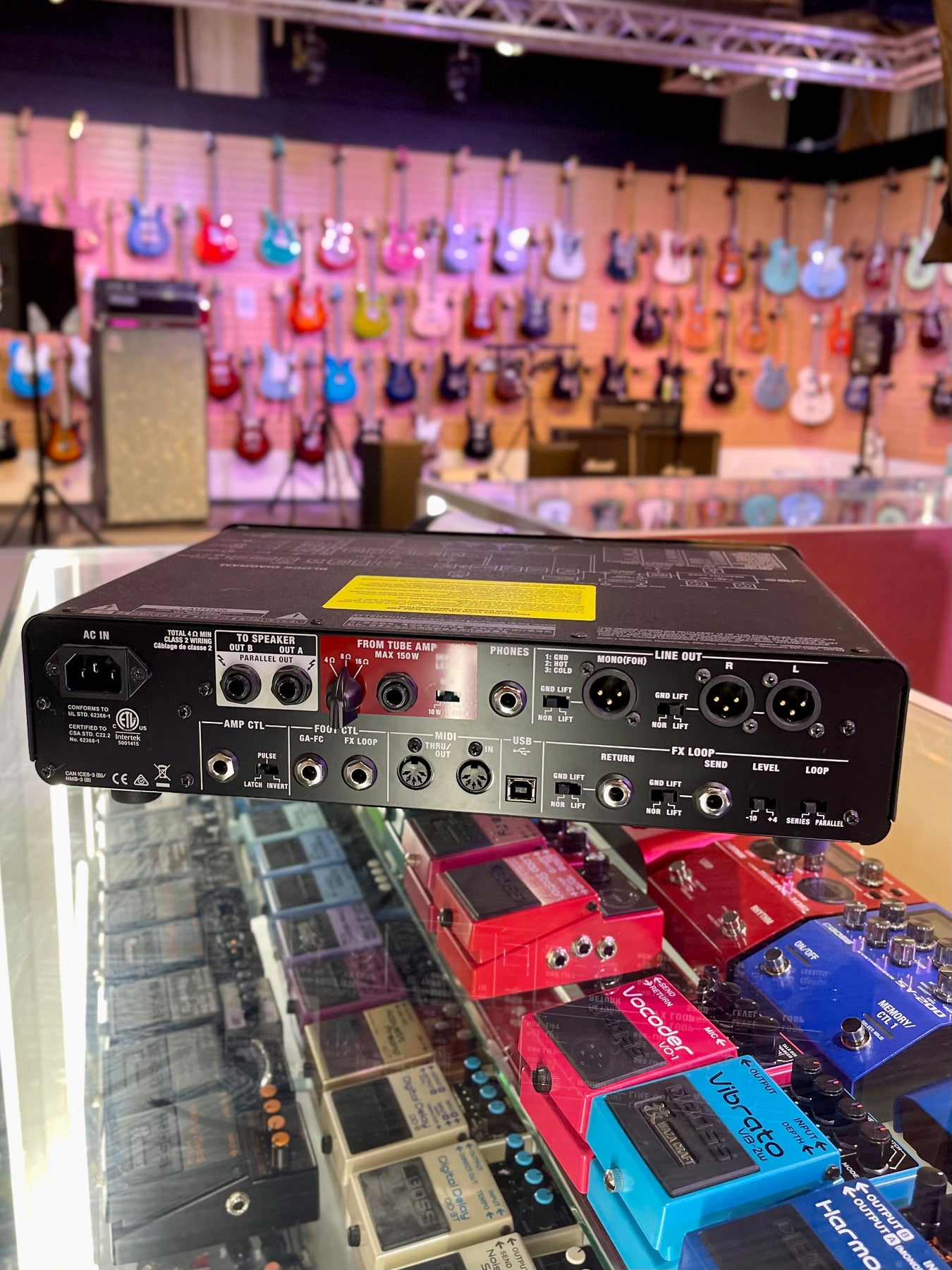

Connectors
FROM TUBE AMP jack: 1/4-inch phone type
SPEAKER OUT jacks (OUT A, OUT B): 1/4-inch phone type
LINE OUT L/R connectors: XLR type
LINE OUT MONO (FOH) connector: XLR type
PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
FX LOOP jack: 1/4-inch phone type
GA-FC jack: 1/4-inch TRS phone type
AMP CTL jack: 1/4-inch phone type
USB COMPUTER port: USB B type
MIDI (IN, THRU/OUT) connectors
AC IN jack

Power Consumption: 100 W


SIZE AND WEIGHT
Width: 380 mm (15 inches)
Depth: 296 mm (11-11/16 inches)
Height: 110 mm (4-3/8 inches)
Weight: 6.8 kg (15 lbs)
