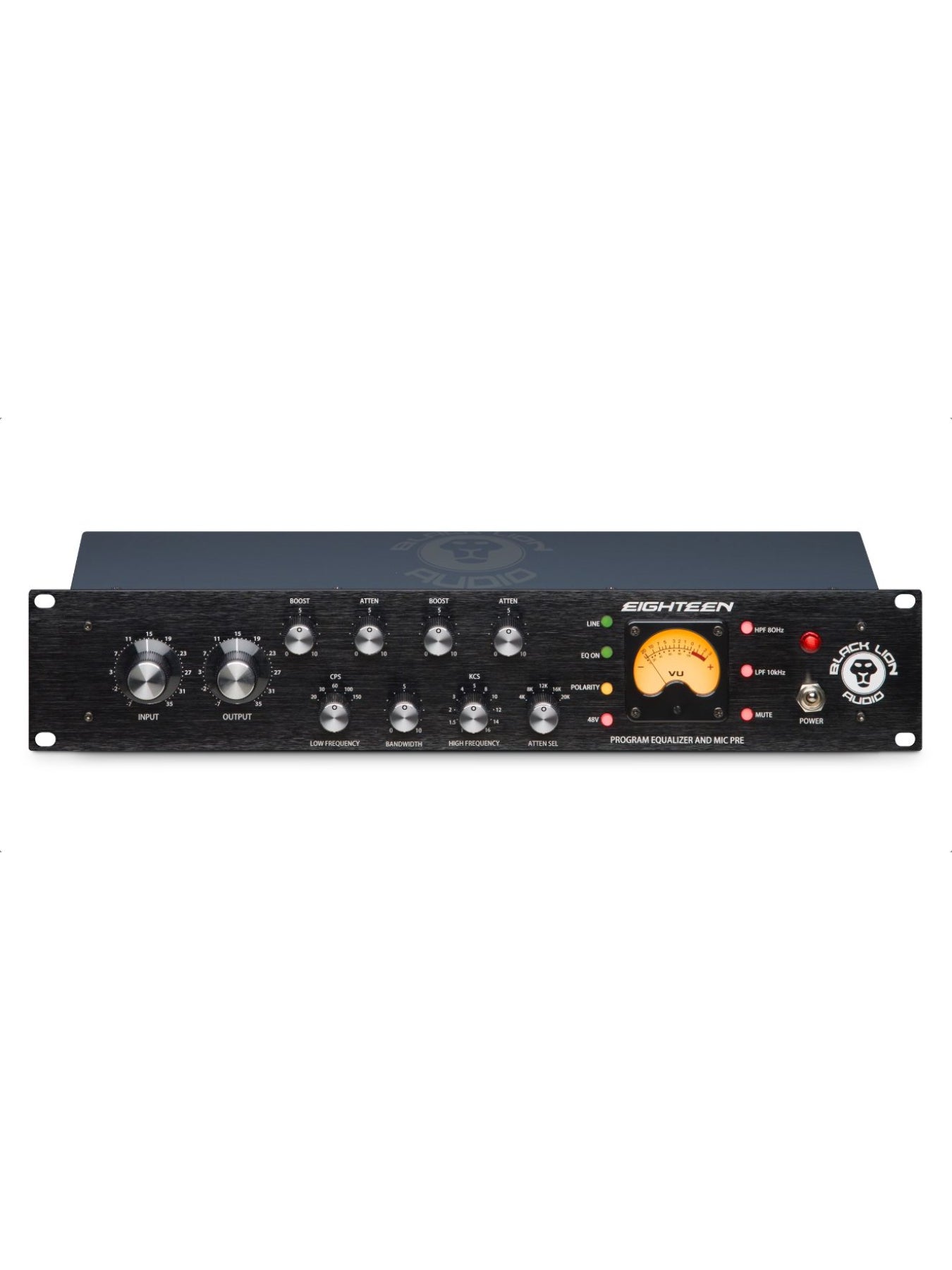

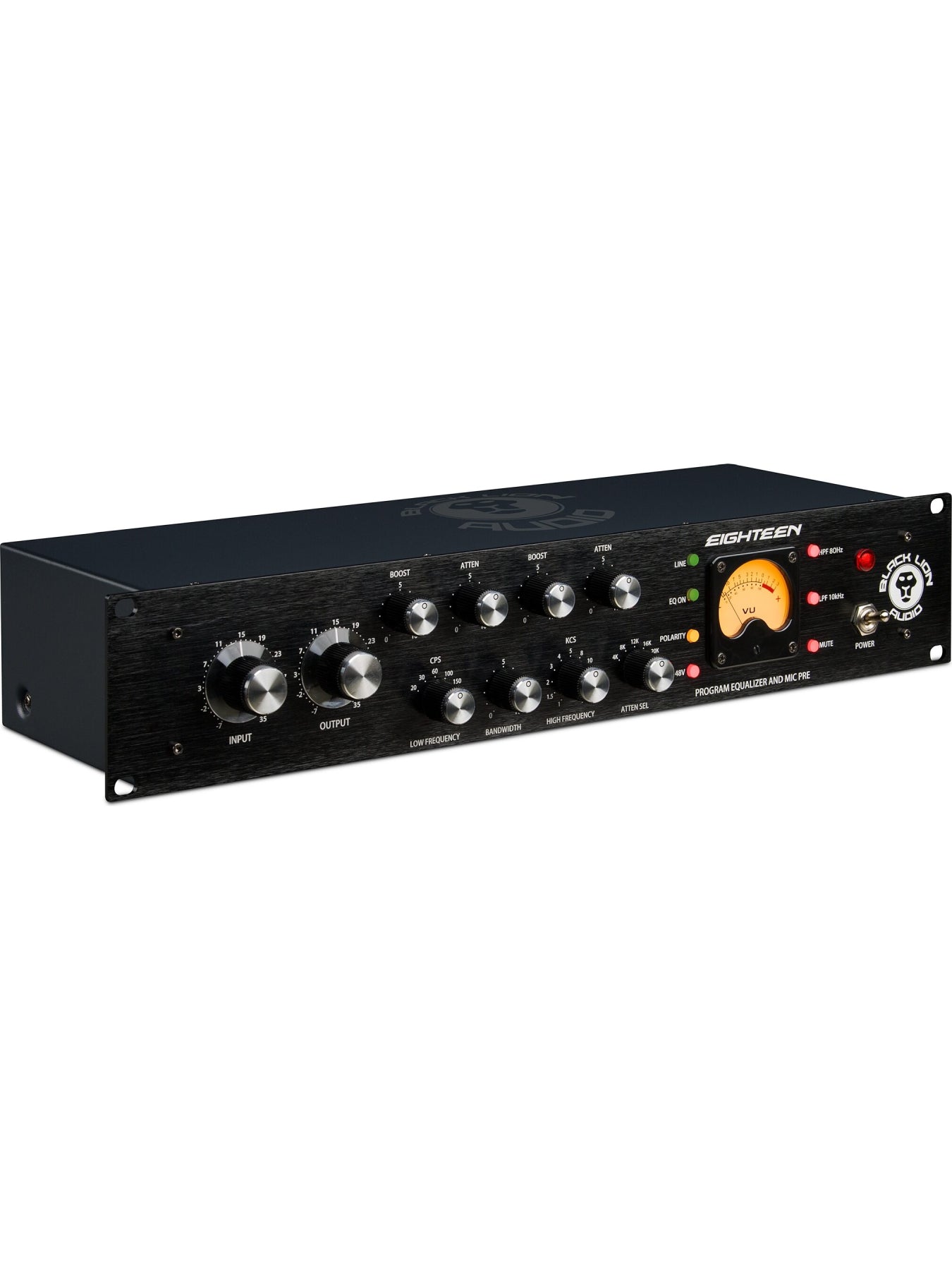

Black Lion Audio EIGHTEEN
Regular price $1,249.00/
1 in stock
Program Equalizer and Microphone Preamplifier
Eighteen's preamplifier circuit isn't just another clone, but an original design built to pay proper tribute to some of the most classic designs ever made. The Eighteen starts with a Cinemag input transformer, but that's far from where the magic stops. In order to get the absolute perfect sound we were looking to achieve with Eighteen meant a bit more work under the hood. This is where Black Lion's new BLA1831 custom, discrete op-amp comes into play. Through an extensive period of component matching, they were able to create a custom op-amp that matched the vibe we were aiming for, while still matching a noise floor that is akin to modern equipment. The preamplifier also features polarity inverse, 48V phantom power, an 80Hz high-pass filter, and a 10kHz low-pass filter.
Features
• Vintage style preamp section with CineMag input and output transformers and custom discrete op-amps
• CineMag inductor-based 2-band passive EQ lets you boost and cut frequencies simultaneously to add focus on the low end and presence at the top end
• Output control for driving the preamp into rich harmonic saturation without signal clipping
• Additional frequency control with 80HZ highpass and 10kHz lowpass filters
• Switchable mic/line inputs, polarity flip, and 48V phantom power for condenser mics, active ribbon mics, and mic activators
• Attractive backlit VU meter on the front panel
• Internal power supply with AC input and voltage selector
Specifications
Preamp Type: Solid State Induction EQ Preamp
Number of Channels: Single channel
Phantom Power: Yes
Polarity Switch: Yes
EQ: 2-band EQ, Lowpass Shelving, 80Hz Highpass, 10kHz Lowpass

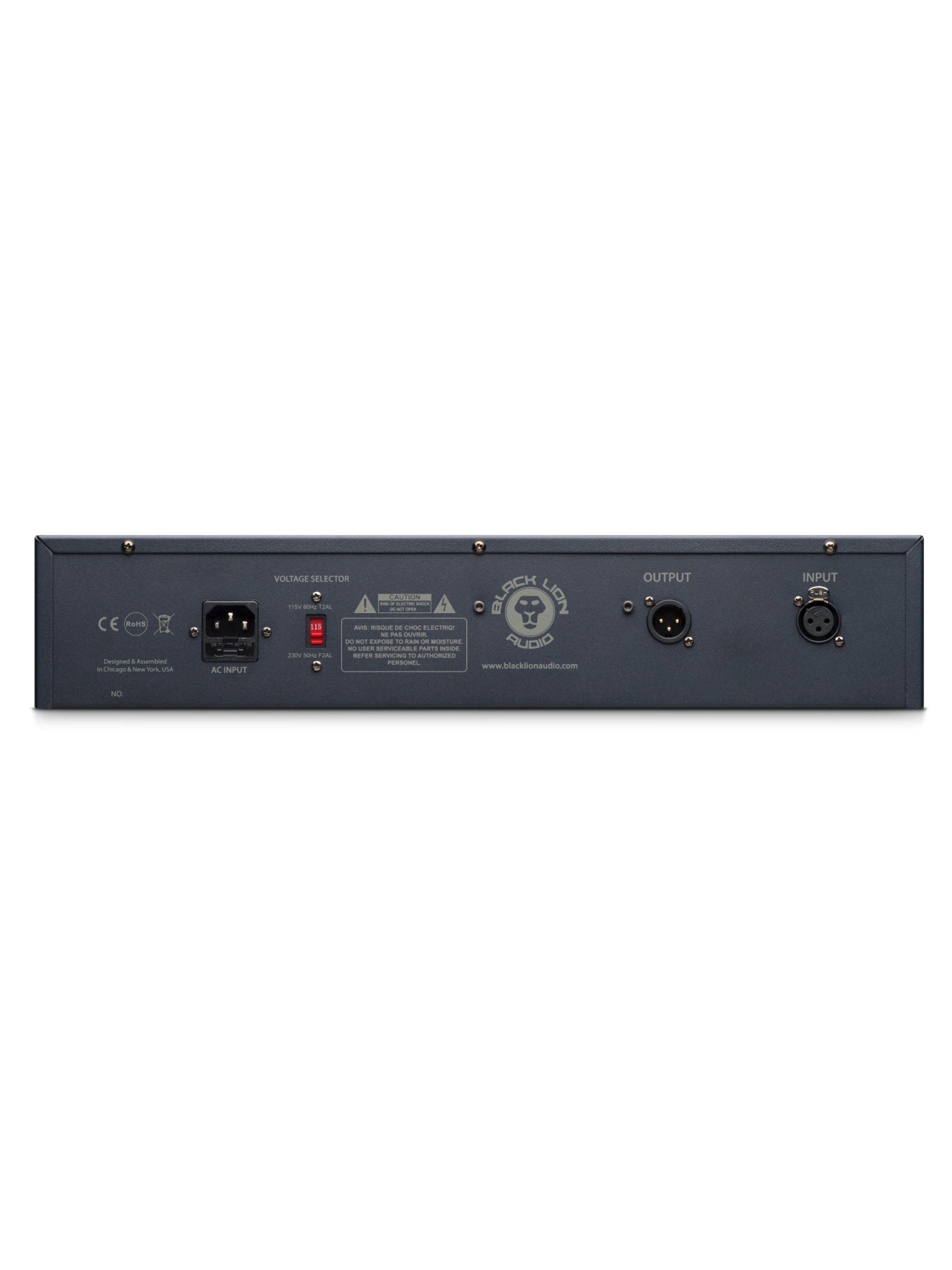

Analog Inputs: 1 x XLR
Analog Outputs: 1 x XLR
Rack Spaces: 2U
Power Source: Standard IEC AC cable
Height: 9" x 15" x 22" (22.86 x 38.1 x 55.88 cm)
Weight: 14.5 lb (6.6 kg)
