Neutrik NAHDMI-W-B

Neutrik NAHDMI-W-B

Regular price $24.00
/

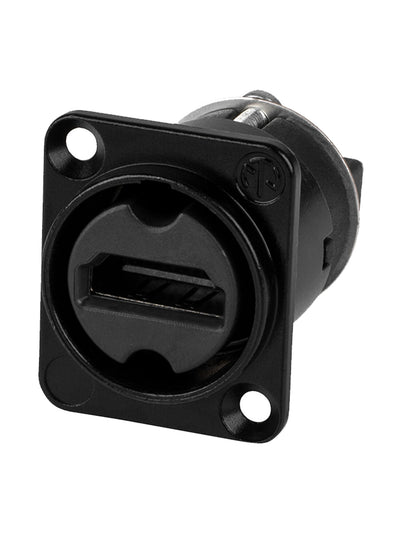

HDMI feedthrough adapter, black D-shape housing

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Features & Benefits

  • To transmit any digital TV and PC video format including high-definition video (HDTV)
  • HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
  • IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
  • Universally accepted standard D-shape housing
  • Removable screen to chassis grounding
  • Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield

Technical Information

Product
Title NAHDMI-W-B
Connection Type Adapter
Gender female
Mechanical
Wiresize
Locking device Push-Pull
Mounting direction Front or rear mounting (max 2 mm panel thickness)
Chassis shape D
Lifetime > 1000 mating cycles
Material
Contact plating Au
Contacts Brass (CuZn39Pb3)
Insert
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Standard compliance HDMI 2.0
Temperature range -25 °C to +85 °C
